Fluid Energy Mill: Principles, construction, working, uses, merits, and demerits

Principles:

A fluid energy mill is a type of size reduction equipment that utilizes a high-velocity jet of compressed gas to impact particles, causing them to break. The principle involves energy transfer from the gas to the particles, leading to the reduction of particle size.

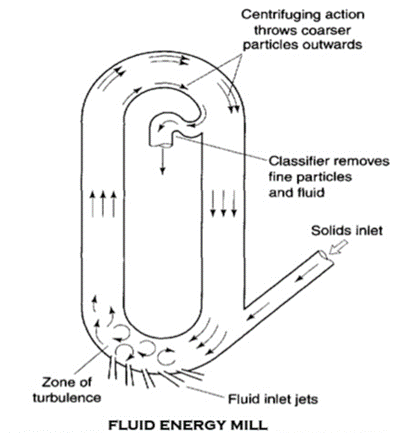

Construction:

1. Mill Chamber: Typically, a cylindrical chamber where the size reduction process takes place. The chamber is designed to allow the efficient passage of the high-velocity gas stream.

2. Nozzle: A nozzle or multiple nozzles introduce the high-velocity gas stream into the mill chamber. The nozzles are strategically positioned to create a fluidized bed of particles.

3. Particle Feed: Feeding the material to be ground into the mill chamber, it interacts with the high-velocity gas stream.

4. Classifier: Some fluid energy mills include a classifier to separate fine particles from coarser ones. The classifier ensures that only particles of the desired size exit the mill.

5. Outlet: Reduced particles exit the mill, and the gas stream, along with finer particles, may recirculate for further size reduction.

Working:

1. Particle Fluidization: Introducing the material to be ground into the mill chamber, the high-velocity gas stream causes the particles to become fluidized.

2. Impact and Attrition: As the particles in the fluidized bed collide with each other and with the high-velocity gas stream, they undergo impact and attrition, leading to size reduction.

3. Classification: The classifier separates fine particles from coarser ones, ensuring that only particles of the desired size exit the mill.

4. Recirculation: Recirculating a portion of the gas stream and fine particles for further size reduction improves efficiency in some cases.

Uses:

1. Micronization: Industries commonly use fluid energy mills to micronize or reduce the particle size of various materials, achieving fine powders.

2. Dry Grinding: Suitable for dry grinding of a wide range of materials, including pharmaceuticals, chemicals, and food products.

3. Jet Milling: It particularly excels in jet milling operations where there is a requirement for high precision and control over particle size.

Merits:

1. High Efficiency: Fluid energy mills can achieve high levels of efficiency in size reduction due to the intense energy transfer from the gas stream to the particles.

2. Narrow Particle Size Distribution: The process allows for the production of powders with a narrow and controlled particle size distribution.

3. Low Heat Generation: Compared to some other milling processes, fluid energy mills typically generate lower levels of heat, making them suitable for heat-sensitive materials.

4. Versatility: Can handle a variety of materials, including those that are friable, brittle, or heat-sensitive.

Demerits:

1. Equipment Cost: Fluid energy mills can be expensive to install and maintain, especially for large-scale industrial applications.

2. Complex Design: The design and operation of fluid energy mills can be more complex compared to some other size reduction equipment.

3. Wear and Tear: Parts of the mill, including nozzles and the mill chamber, may experience wear due to the high-velocity gas stream and particle impact, necessitating regular maintenance.

4. Particle Attrition: In some cases, excessive particle attrition may lead to unwanted fines, affecting the product quality.

fluid energy mills are powerful tools for achieving fine particle size reduction in various industries. Understanding their principles, construction, working, uses, as well as merits and demerits is crucial for optimizing their performance in different applications.
