1. Principles of Horizontal Tube Evaporator
A horizontal tube evaporator is a type of heat exchanger that employs the principles of evaporation to concentrate a liquid solution. It operates by passing the solution through a series of horizontal tubes while steam is condensed on the outer surface of the tubes, transferring heat to the solution and causing the solvent to evaporate.

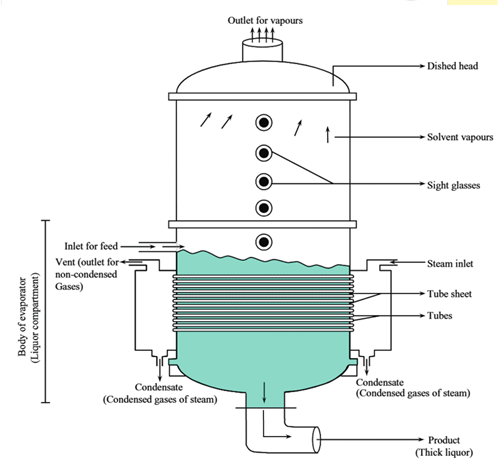

2. Construction of Horizontal Tube Evaporator
a. Horizontal Tubes:
– The main component consists of horizontally oriented tubes through which the liquid solution flows. The tubes are typically made of materials like stainless steel or copper.
b. Shell:
– Surrounding the tubes is a shell that allows the circulation of steam for heating the solution inside the tubes.
c. Steam Inlet and Outlet:
– Inlets and outlets for steam facilitate the circulation of steam within the shell.
d. Solution Inlet and Outlet:
– Ports for the entry and exit of the liquid solution, allowing it to flow through the horizontal tubes.
e. Condensate Outlet:
– A condensate outlet is provided for the removal of condensed steam or vapor.
3. Working of Horizontal Tube Evaporator
1. Solution Entry:
The liquid solution enters the horizontal tubes through the solution inlet.
2. Steam Circulation:
Steam is introduced into the shell, surrounding the tubes, and is condensed on the outer surface of the tubes.
3. Heat Transfer:
The heat from the condensing steam is transferred through the tube walls to the liquid solution inside, causing evaporation.
4. Concentration:
As the solution passes through the tubes, its concentration increases as the solvent evaporates.
5. Solution Exit:
The concentrated solution exits the horizontal tubes through the solution outlet.
4. Uses of Horizontal Tube Evaporator
a. Chemical Industry:
– Used for concentrating chemical solutions in various industrial processes.
b. Food Processing:
– Applied in the food industry for concentrating fruit juices, syrups, and other liquid food products.
c. Pharmaceutical Industry:
– Utilized for the concentration of pharmaceutical solutions and extracts.
d. Wastewater Treatment:
– Employed in treating industrial wastewater by concentrating dissolved solids.
e. Desalination:
– Applied in certain desalination processes to concentrate brine.
5. Merits of Horizontal Tube Evaporator
a. Continuous Operation:
– Horizontal tube evaporators can operate continuously, making them suitable for large-scale industrial processes.
b. Efficient Heat Transfer:
– The design allows for efficient heat transfer between the steam and the liquid solution, ensuring effective evaporation.
c. Versatility:
– Can handle a variety of liquid solutions with different concentrations, making them versatile in different industries.
d. Compact Design:
– Horizontal tube evaporators are often compact in design, saving space in industrial setups.
6. Demerits of Horizontal Tube Evaporator
a. Scaling Issues:
– The accumulation of scale on the tube surfaces can reduce heat transfer efficiency and necessitate regular maintenance.
b. Limited Heat Recovery:
– Complete recovery of heat from the condensing steam may not be achievable due to practical limitations.
c. Initial Cost:
– The initial installation cost may be relatively high, depending on the scale and complexity of the system.
d. Energy Consumption:
– While efficient, the operation requires a source of steam, contributing to energy costs.
Horizontal tube evaporators play a crucial role in various industries where concentration of solutions is required. Their design, working principles, and versatility make them well-suited for continuous and efficient operation in processes ranging from chemical manufacturing to food processing. Understanding both the merits and demerits is essential for optimizing their use in specific industrial applications.
