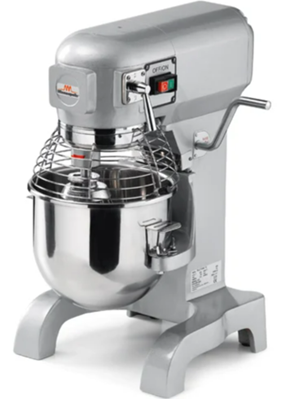

A planetary mixer is a versatile industrial mixing machine widely used in various industries for the preparation of a diverse range of products, including dough, batter, creams, pastes, and more. It is named “planetary” because of its mixing action, which resembles the motion of planets orbiting the sun.

 Principles of Planetary Mixers

Planetary mixers operate on the principle of planetary motion, where the mixing element (usually a set of blades or agitators) revolves around the central axis while simultaneously rotating on its axis. This dual motion ensures thorough mixing, blending, and kneading of various materials.

 Construction of Planetary Mixers

1. Planetary Drive System:

   – Planetary mixers consist of a central vertical shaft connected to a motor. The mixing element is mounted on this shaft.

2. Mixing Element:

   – The mixing element, often a set of blades, agitators, or a combination, is attached to the central shaft and rotates around the bowl while revolving on its axis.

3. Bowl:

   – The mixing bowl is typically hemispherical or cylindrical, and it remains stationary while the mixing element moves. The bowl may be jacketed for temperature control.

4. Adjustable Height:

   – Some planetary mixers have an adjustable height feature, allowing the user to lower or raise the mixing element to the desired depth within the bowl.

5. Controls:

   – Modern planetary mixers have electronic controls to regulate speed, time, and other parameters.

 Working of Planetary Mixers

1. Loading:

   – Ingredients are loaded into the mixing bowl, then securely locked in place.

2. Planetary Motion:

   – The mixing element revolves around the central shaft and simultaneously rotates on its axis. This dual motion ensures the material is constantly pulled towards the center and pushed outward.

3. Intensive Mixing:

   – The planetary and rotational motion combination provides intense mixing, leading to thorough blending, kneading, or whipping of the ingredients.

4. Scraping Action:

   – Some planetary mixers are equipped with scraping blades that move along the bowl’s interior, ensuring that ingredients are continuously incorporated into the mixing process.

5. Temperature Control:

   – In some models, the mixing bowl is jacketed, allowing for temperature control during mixing.

6. Discharge:

   – After mixing, the bowl can be unlocked, and the mixture is discharged.

 Uses of Planetary Mixers

1. Bakery and Pastry:

   – Mixing dough for bread, cakes, cookies, and other baked goods.

2. Food Processing:

   – Blending ingredients for sauces, dressings, fillings, and other food products.

3. Pharmaceuticals:

   – Mixing powders, granules, and other ingredients for pharmaceutical formulations.

4. Cosmetics:

   – Preparing cosmetic creams, lotions, and other beauty products.

5. Chemical Industry:

   – Blending chemicals, polymers, and various formulations in the chemical industry.

 Merits of Planetary Mixers

1. Thorough Mixing:

   – The planetary motion ensures comprehensive mixing, resulting in uniform and homogenous products.

2. Versatility:

   – Suitable for a wide range of viscosities and formulations, making it versatile across industries.

3. Batch Processing:

   – Effective for batch processing with consistent and repeatable results.

4. Scraping Action:

   – Scraping blades enhance the mixing process by ensuring that ingredients are consistently incorporated.

5. Temperature Control:

   – Jacketed bowls allow for precise temperature control, making them suitable for temperature-sensitive processes.

 Demerits of Planetary Mixers

1. Limited Capacity:

   – Planetary mixers may have limitations in terms of batch size, making them less suitable for large-scale production.

2. Complex Design:

   – The design, especially with scraping blades and other features, can be more complex, potentially requiring more maintenance.

3. Cost:

   – Planetary mixers with advanced features can be more expensive than simpler mixers.

4. Energy Consumption:

   – Operating planetary mixers can be energy-intensive, especially for extended mixing times.

Understanding the principles, construction, and applications of planetary mixers is essential for utilizing their capabilities in different manufacturing processes. The choice of a planetary mixer depends on the specific characteristics of the materials being processed and the desired blending efficiency.
